Data Journal - Archived

Warning

This all works, but ultimately I decided not to use it in lieu of one big spreadsheet like I used to.

Data Journal is the latest iteration of my long-running quantified self project. This iteration of the whole Life Tracker/Personal Data Warehouse. It’s not technically a total re-write of my previous project, but it’s pretty darn close.

Tldr

• Data Journal is a system for capturing, maintaining, & using event-based data
• Data Journal is a set of data shapes (i.e. regular objects) & tools for operating on them
• A DataJournal is comprised of arrays of Entrys and Defs, where:
  • A Def is a definition of a known key/value pair that may exist on Entrys
  • An Entry is an event that happened in a give time period, containing zero-to-many keys/value pairs described by Defs
• DataJournals can be:
  • merged together without duplication
  • modified (via transactions)
  • queried (via querys)
• The PDW is a system for managing multiple DataJournals, stored across disparate databases and/or files

A few more details:

• The Data Journal code is not class-oriented.
  • All data shapes can be serialized to and parsed from JSON without data loss
  • No “instances of class” are required, everything is based on regular objects
  • Classes are used as namespaces for related functions
• A DataJournal is comprised of an array of Entrys and an array of Defs
  • Metadata properties of elements (i.e. Entrys and Defs) start with an underscore
• A Def defines known key/value pairs that may exist on Entrys
  • A Def must contain _id, _updated, and _type keys
  • Defs may have other keys as well
  • Def._id values cannot start with an underscore
• An Entry is a record of something that happened at some point in time
  • An Entry must contain _id, _updated, and _period keys
  • An Entry may have other keys as well
  • An Entry typically contains one or many entry “points”, which have an associated Def
    • An entry point is a key/value pair on an Entry whose key is a Def._id
• Merging two or more DataJournals will only keep one copy of each element based on its _id, in the case where multiple copies exist, it will only keep the one with the largest _updated value (i.e. the newest one is kept)
• Data Journals may be written to (via transaction) or read from (via query) using regular objects
  • A Transaction may update elements via create, replace, modify, or delete
    • create
      • will always create & not look for existing data with the same .
    • replace
      • if the _id is not in the DataJournal, will create it
      • if the existing _id in the journal is older, will fully replace it
      • if the existing _id in the journal is newer, will not affect it at all
    • modify
      • if the _id is not in the DataJournal, will create it
      • if the existing _id is older, it will retain any keys not explicitly overwritten by the modification
      • if the existing _id is newer, will not affect it at all
    • delete
      • will always mark the matching element _id as _deleted = true
  • A Query is an object full of Entry-filtering parameters
• Other utility classes operating on DataJournals do exist, but are decoupled from each other and the Data Journal code does not depend on them.
  • Examples: Summarizer, Validator, Overviewer, Aliaser, and a host of Translators and Connectors which allow for reading/writing from static files and databases, respectively

Main Concepts via Picture

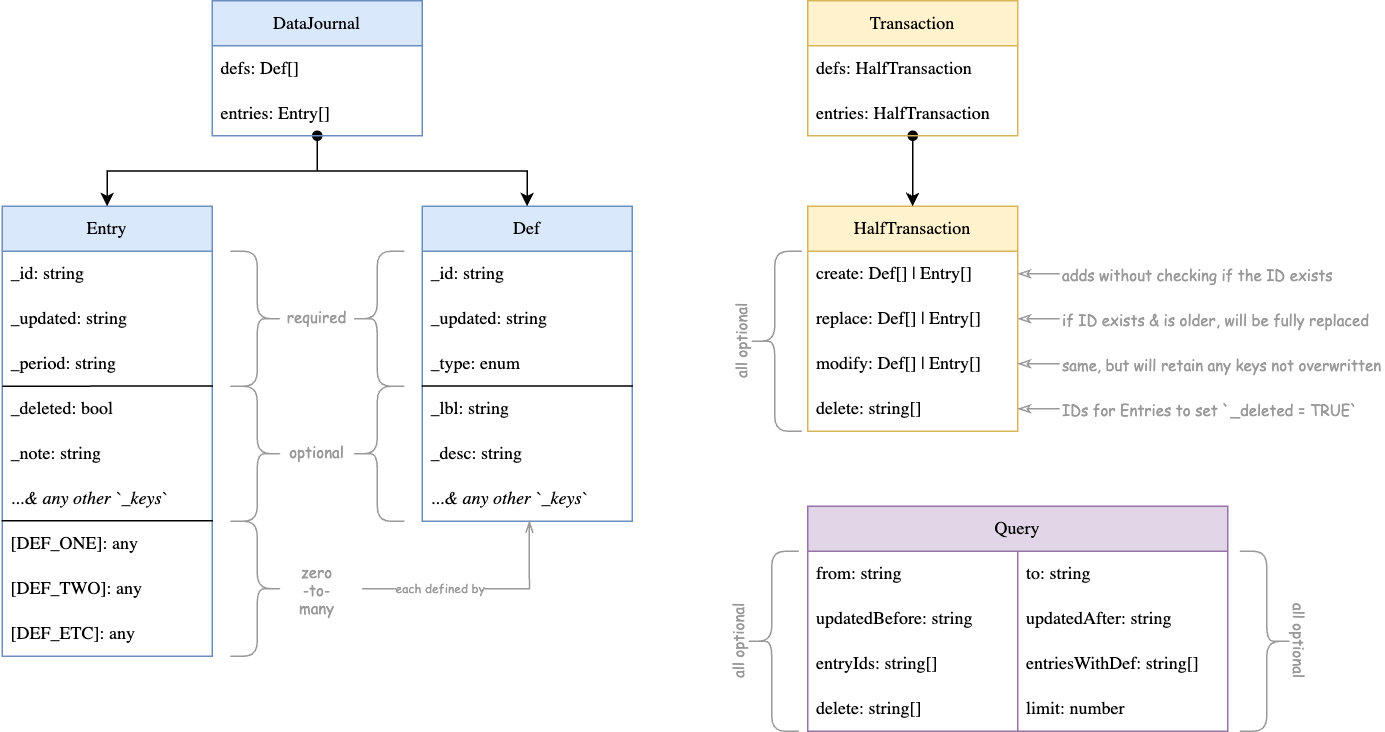

Data Shapes

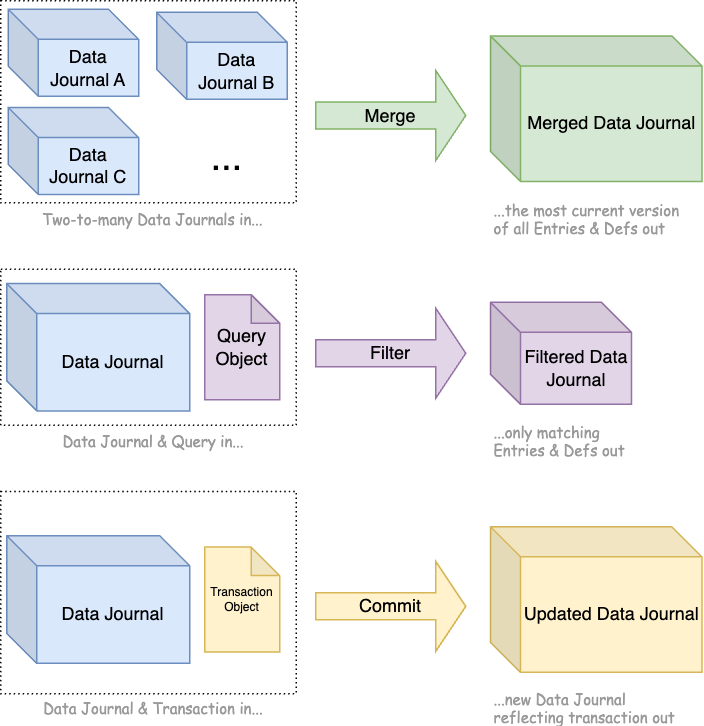

Main Processes

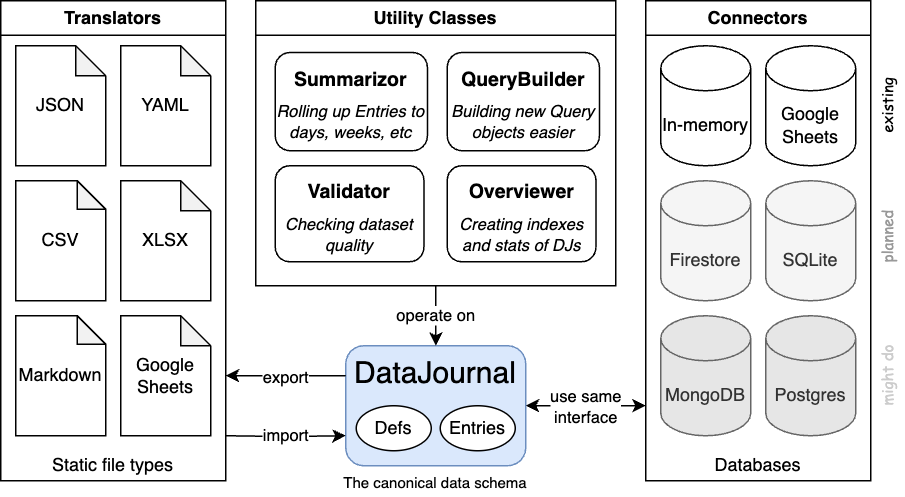

Connectors, Translators, & Utilities
